Flanges
Available enquiry forms include WNRF, WNRTJ, SORF, blind, socket weld, threaded, lap joint, long weld neck, orifice and RTJ. State dimensional standard or drawing, class, facing and bore.
View product engineering
Dubai Industrial City component procurement
Specialty Alloy Flanges & Pipe Fittings for Dubai Industrial City
Material and product definition for chemical, metals, machinery, fabrication and manufacturing plant requirements.
Area-specific procurement
Start with the actual service and buyer context.
RTI supplies Dubai Industrial City requirements from its India manufacturing and export operations. RTI does not claim a factory, warehouse or stock location inside Dubai Industrial City.
Raymond Tube Industries supplies technically defined stainless steel, nickel alloy, duplex and super duplex flanges and pipe fittings for Dubai Industrial City manufacturing requirements. The procurement focus is chemical production, base-metal and machinery operations, industrial fabrication, process plants, utilities and equipment packages rather than a generic city-level alloy listing.
Dubai Industrial City's official masterplan includes dedicated zones for base metals, machinery, minerals, food and beverage, transport and chemicals. A chemical process line, plant utility, machinery skid and fabricated transfer system may all use flanges and fittings, but they do not share one automatic material or inspection basis.
A useful enquiry identifies the plant or package duty, design conditions, approved grade, product form, standards, dimensions, corrosion or cleanliness considerations, quality plan and required date. RTI can then review ASME forms and drawing-based components while keeping certificates, PMI, dimensions, marking and packing aligned.
Material range
Four material families, ordered for this area's buying context.
The listed grades are enquiry routes. Final material suitability remains subject to actual process conditions, project standards and engineering approval.
Stainless Steel
Applicable across many utility, fabrication and process-support requirements when the specified grade suits the medium, temperature, cleaning and fabrication route.
- 304 / 304L
- 316 / 316L
- 321
- 347
- 904L
- 254 SMO
Nickel Alloy
Relevant to selected chemical, thermal or corrosive duties where an exact Inconel, Incoloy, Hastelloy, Monel, Nickel or Alloy 20 route is approved.
- Inconel 600
- Inconel 601
- Inconel 625
- Inconel 718
- Incoloy 800 / 800H / 800HT
- Incoloy 825
- Hastelloy C22
- Hastelloy C276
- Monel 400
- Nickel 200 / 201
- Alloy 20
Duplex
S31803 or S32205 / 2205 may be specified for strength and corrosion performance in defined process or water service, with heat treatment and welding controlled.
- UNS S31803
- UNS S32205 / Duplex 2205
- F51 / F60 where applicable
Super Duplex
S32750 and S32760 belong only in project-approved severe chloride or aggressive service; corrosion testing and acceptance requirements must be stated.
- UNS S32750 / 2507 / F53
- UNS S32760 / F55
Product scope
Define the component form before comparing supply.
Manufacturing packages can mix standard piping components with drawing-based interfaces. Keep catalogue forms and special machined items on separate, fully dimensioned line items.
Pipe Fittings
Define 90-degree or 45-degree elbows, equal or reducing tees, concentric or eccentric reducers, caps, stub ends, crosses, socket-weld fittings and threaded forged fittings by geometry, size, schedule or bore, end preparation, construction class and material standard.
View product engineering
Operating environments
A sector-specific manufacturing district demands line-service-specific purchasing.
Chemical manufacturing
Concentration, contaminants, temperature, pressure and cleaning chemistry can change alloy suitability. Send process information where review is required.
Base metals and processing
Utility, treatment, pickling, cooling and transfer services may have different corrosion and temperature demands within one facility.
Machinery and equipment
Skid interfaces often need controlled bores, compact forged fittings, special dimensions or drawing approval.
Industrial fabrication
Fabricators should define mating pipe, wall, weld preparation, tolerances and marking to prevent fit-up problems.
Process utilities
Steam, cooling water, compressed air, chemical dosing and wastewater each require their own piping class.
Plant maintenance
Brownfield replacements need field dimensions, existing markings and material verification rather than nominal size alone.
Engineering context
A sector-specific manufacturing district demands line-service-specific purchasing.
Connectivity to Jebel Ali Port, Al Maktoum International Airport, major roads and rail supports both plant operations and regional supply chains. Technical release and delivery planning should be coordinated early where fabrication, imported materials and shutdown dates must converge.
RTI can address standard components and drawing-based requirements, but purchaser approval remains essential for material suitability and code compliance. Location context plans delivery; it cannot apply one alloy across chemicals, metals and machinery without review.
Procurement concerns
Resolve commercial risk before purchase release.

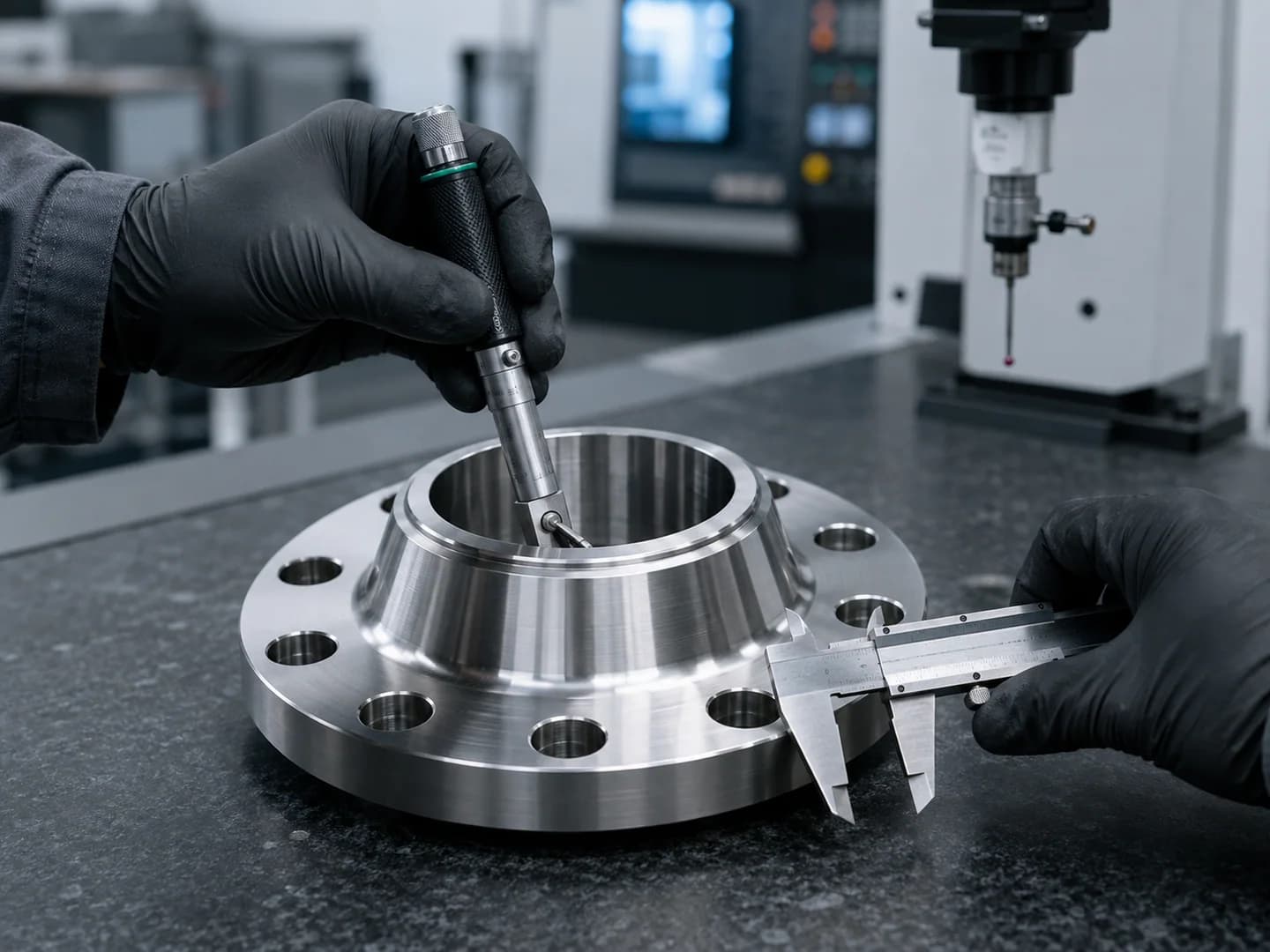

Inspection and documentation
Build evidence into the RFQ, not after manufacture.
Standards and buyer guidance
Connect material, component geometry and certificate requirements.
ASME B16.5
Flange dimensions, pressure classes and facings for the applicable range.
ASME B16.9
Dimensional basis for factory-made wrought butt-welding fittings.
ASTM B564
Material route for specified nickel alloy forgings and flange products.
ASTM B366
Material route for specified wrought nickel and nickel alloy fittings.
EN 10204 3.1
Certificate and traceability expectations when specified.
PMI Testing
Positive Material Identification planning and report controls.
Dubai Industrial City RFQ
Send one complete technical and delivery record.
For machinery or fabricated packages, include the equipment tag, line number, approved drawing, mating-pipe data and document-submittal schedule.
Related technical routes
Continue from area context to product authority.
Dubai Industrial Areas
Compare other Dubai industrial districts.
Chemical Processing
Review corrosion and procurement considerations.
Industrial Process Plants
Connect component selection to the plant environment.
ASTM B564 Guide
Review nickel alloy flange material requirements.
Nickel Alloy Flanges
Review alloy flange forms, material routes and inspection inputs.
Nickel Alloy Pipe Fittings
Review wrought and forged nickel alloy fitting requirements.
Stainless Steel Flanges
Define stainless flange form, class, facing, bore and grade.
Stainless Steel Pipe Fittings
Define stainless fitting geometry, wall schedule and ends.
Duplex Flanges
Review Duplex 2205 flange procurement controls.
Super Duplex Components
Review S32750 and S32760 product routes.
Quality and Traceability
Plan MTC, PMI, inspection, TPI, marking and release records.
Request Technical Quotation
Send the complete component and Dubai delivery requirement.
Technical procurement FAQ
Answers for Dubai Industrial City buyers.
Dubai Industrial City technical quotation
Send the complete flange or fitting requirement.
Share the material and UNS, product form, dimensions, standards, quantity, inspection, documents, packing and Dubai Industrial City delivery context.
